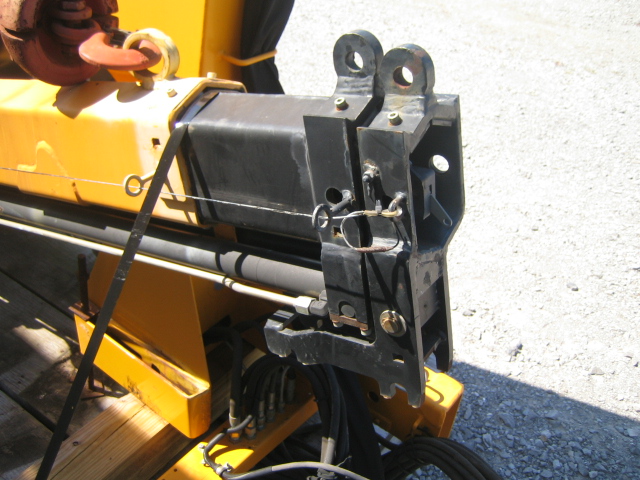

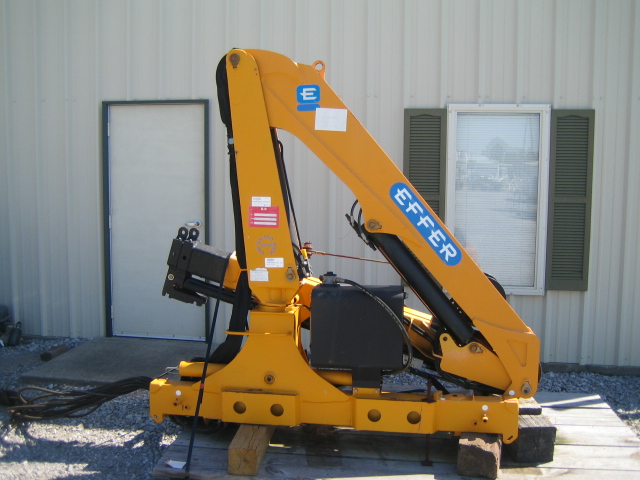

Effer Marine Knuckleboom Crane With Winch

•2005

•Model 62-2S

•Serial # 110768

•5,306 pounds capacity max out to 7' 10".

•23' 5" powered boom with 2 powered extensions yeilding 1741.6 pounds at that radius.

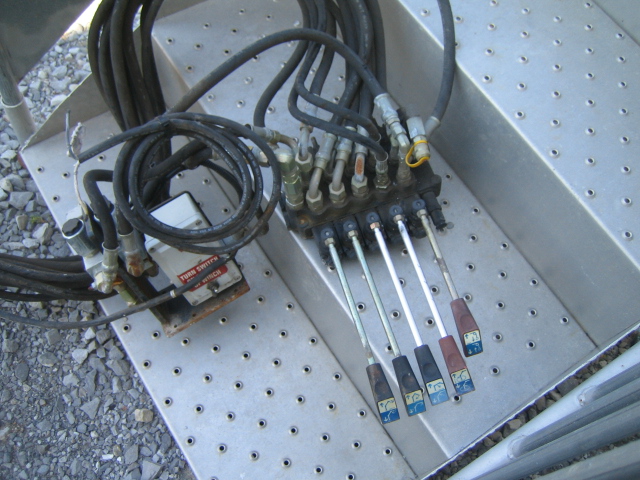

•Manual lever controls with approx. 10' of hose to mount remote.

•ATB installed on winch.

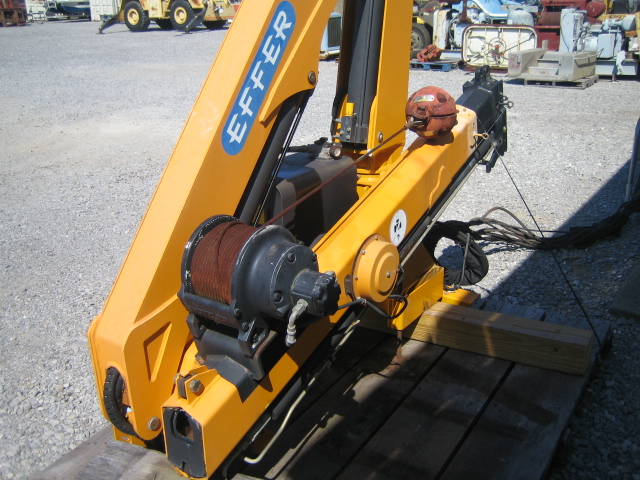

•Rotzler planetary hydraulic winch with Johnston 3 ton over-haul ball with swivel safety hook.

•New. never installed, with Johnston snatch block, hold down bolts, etc..

•On board hydraulic tank with return filter and filter condition gauge.

•Paperwork was included with crane and has gotten wet.

•Major oil company surplus, not used.

•Load chart shows up to two more sections can be added to go to 35' 3" (970 pounds capacity).

•The manufacturer gives the crane weight at 2000 pounds. However, we must also figure in the accessories; so add, the winch, the winch foundation and bolts, wire rope on the winch, overhaul ball and hook, hook deadman (welded), Johnston snatch block for winch cable (not shown but included), shackle to hang block, extra hoses for winch, extra oil and extra control, Anti two block system and wire and switches. So add about 600 more pounds to be sure, 2600 total without wood base.

•Requires 5.2 gallons per minute at 4061 psi (according to manufacturers brouchure). Should be about 14hp.

•Two each (optional, not included) manual pull out boom extensions can be added to go to 35'3")

•Priced at SOLD with winch, ball and hook, controls, snatch block, anti 2-block (12 VDC)

•Available (20hp continuos) 3 cylinder water cooled diesel engine with pump drive for additonal cost (un-used)

•Presently located at our Lafayette office location at 5917 Hwy 90 E in Broussard, LA 70518.

•Contact us at 985-384-9517
