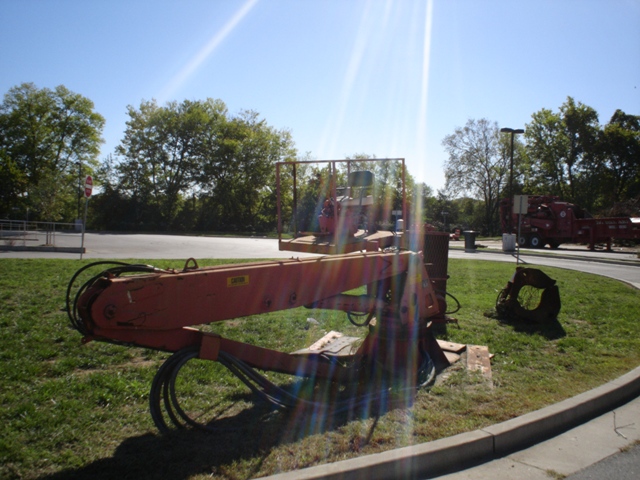

Hood Loader

Hood Loader

SOLD

Model 7000

Hydraulic Pedestal Loader with knuckle boom

Comes with a 50HP (208-230, 460 VAC) electric over hydraulic power pack with tank and cooler

Comes with a hydraulic clamshell bucket with a bucket rotator

Mounted operators seat with stacked spool control valves and foot pedals provides good visibility for all operations, can possibly be moved to lower

Approximate boom reach of 22 feet

Manufacturers website is here:
www.hoodloaders.com

Full specs for the current model 7000's are here:
http://www.hoodloaders.com/brochures/7_8_reg.pdf

The load chart is at the above link also, but note that the unit shown in the chart is a typical truck mount with the turntable 7 feet above ground level. The unit I have for sale has the turn table closer to one foot off the deck. Considering that, the max vertical boom tip height will be about 25' and the maximum negative boom tip height will be about 10' below deck.

Rated 9275 pounds at 10 feet out to 4480 at 22 feet

Max boom tip height is about 25' positive and 10' negative

Loader weighs about 6000 pounds which does not include the large base plate, power unit or clamshell bucket.

Base is almost square at 5' wide x 5' 4" (front to rear). Base plate is 1.25" thick. Comes with another set of smaller 1.25" thick plates and matching drilled rubbers to shock mount base on rubber if desired. Overall width with operators platform is 6' 8". Overall length as pictured with boom folded is 15' 1". Height to top of handrail is 7' 10". Height to top of boom and hoses near center of rotation is 56". Height to top of boom lifting padeye (near knuckle) is 64".

All hoses are marked. The large ones hooked to the boom actually lay on the ground and go straight over to the power unit instead of through the boom.

Never near the water.

Located in Broussard, LA yard at 5917 Hwy 90 East in Broussard, LA 70518
